Mapping with LiDAR (Light Detection and Ranging) sensor data

Mapping LIDAR sensor data is the process of using rapid laser pulses to measure distances and create highly detailed, three-dimensional representations of environments. The resulting data, known as a point cloud, provides precise positional and elevational information for both natural and man-made features.

How LiDAR Mapping Works

A LiDAR system typically consists of a laser scanner, a Global Positioning System (GPS), and an Inertial Navigation System (INS).

1. Emission: The sensor emits millions of laser pulses per second toward a target.
2. Reflection & Detection: The pulses reflect off objects (like ground, trees, or buildings) and return to the sensor.
3. Distance Calculation: The system measures the “time of flight” (TOF) for each pulse’s return journey. Knowing the constant speed of light, it calculates the precise distance between the sensor and the target object (Distance = Speed of light x Time elapsed / 2).
4. Positioning: The distance measurements are combined with the GPS location and INS orientation data (pitch, roll, and heading) of the sensor platform to determine the exact 3D coordinates (x, y, z) of each reflected point.

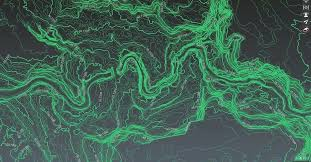

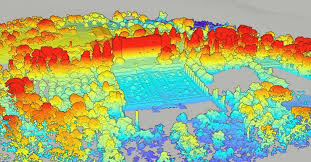

5. Point Cloud Generation: These individual points form a massive dataset called a point cloud, which is the raw 3D map of the environment.

Key Data Products and Processing

Raw point cloud data is processed using specialized software to create usable map products.

• Digital Surface Models (DSM): These models include all features on the Earth’s surface, such as buildings and vegetation.
• Digital Terrain Models (DTM): By filtering out objects and vegetation, DTMs show only the bare ground elevation, which is crucial for understanding the underlying topography.
• Digital Elevation Models (DEM): A general term for high-resolution models of ground elevation.

Processing involves steps like data filtering, cleaning, and point cloud classification (e.g., identifying points as ground, building, or vegetation). Techniques like Simultaneous Localization and Mapping (SLAM) or point cloud registration algorithms (e.g., ICP) are used to align successive scans and correct for drift to build large, seamless maps.

Primary Applications

LiDAR mapping offers unparalleled accuracy and efficiency across various fields.

• Topographic Mapping & Surveying: Creates highly detailed 3D maps and models of terrain for construction, infrastructure design, and land management.
• Environmental Monitoring: Helps monitor forests, coastal erosion, and habitats by measuring vegetation density and land cover changes over time.
• Urban Planning: Provides precise measurements of existing infrastructure and landforms for smarter city design and managing growth.
• Autonomous Systems: Essential for self-driving vehicles and robotics to “see” and navigate their environment in real time.
• Disaster Management: Enables accurate flood modeling, landslide risk assessment, and rapid damage identification after events.
• Archaeology: Reveals hidden structures and ancient landscapes obscured by vegetation.

For US data, you can access Lidar data from the USGS National Map or NOAA’s Data Access Viewer.
